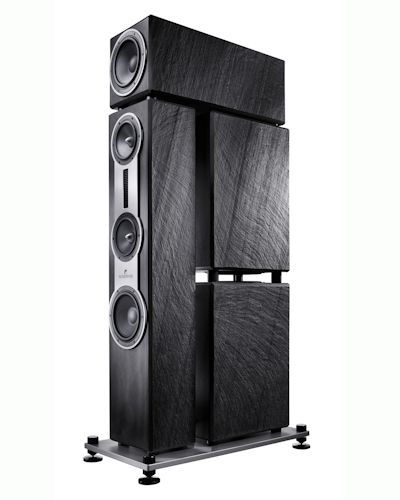

Fischer&Fischer SN1000.1 AMT 4-way passive loudspeaker · Tri-wired

Frequency response (+/- 3 dB)

22 - 25.000 Hz

Impedance

4 ohms

Sensitivity

92 dB (1 W / 1 m)

Max. acoustic pressure

118 dB

Frequency dividing network

1st and 2nd order phase and impedance corrected filters

Function principle

bass reflex

Subwoofer system

two 260 mm FISCHER & FISCHER cone speakers with carbon paper foam sandwich membrane

Bass system

two 220 mm FISCHER & FISCHER cone speakers with carbon paper foam sandwich membrane

Midrange system

two 180 mm FISCHER & FISCHER cone speakers with carbon paper, carbon foil sandwich membrane, neodymium magnet and aluminium phaseplug

Tweeter

one FISCHER & FISCHER-Air Motion Transformer (AMT), special custom made by Mundorf

Connecting terminal

Tri-Wiring, with pure silver bridges, 63 A connecting terminals, rhodium plated

Cabinet material

20 / 23 mm thick low-resonance natural slate

Floor system

aluminium, levellable

Dimensions slate cabinet (H x W x D)

1560 x 275/320 x 715 mm

All over dimensions incl. floor system (H x W x D)

1620 x 420 x 830 mm

Weight

283 kg
